ACIT 2620

Packet filtering with Netfilter

Packet Filtering

• Network devices such as router can filter traffic based on some well-defined rules
• This is often used to implement firewalls
• Traffic can be filtered based on source/destination IP addresses and port numbers, protocol type, connection state, …
• Packet filtering is also used to implement Network Address Translation (NAT)

Netfilter

• Overall name for the project that houses all firewalling functions in Linux
• Also name of the framework for connecting (hooking) functions to different stages of the Linux networking stack
• Provides tools for configuring firewalls:
  • nftables (replaced iptables)
  • firewalld

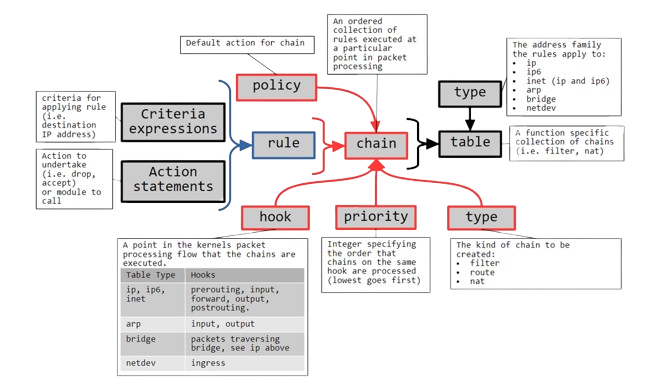

Netfilter Concepts

Netfilter: Rules

• As packets are processed by the kernel, there are opportunities to apply rules to the packet
• Components of a rule:
  • Criteria expression
    e.g.:
    • all traffic leaving from or going to 10.0.16.0/24
    • all UDP packets

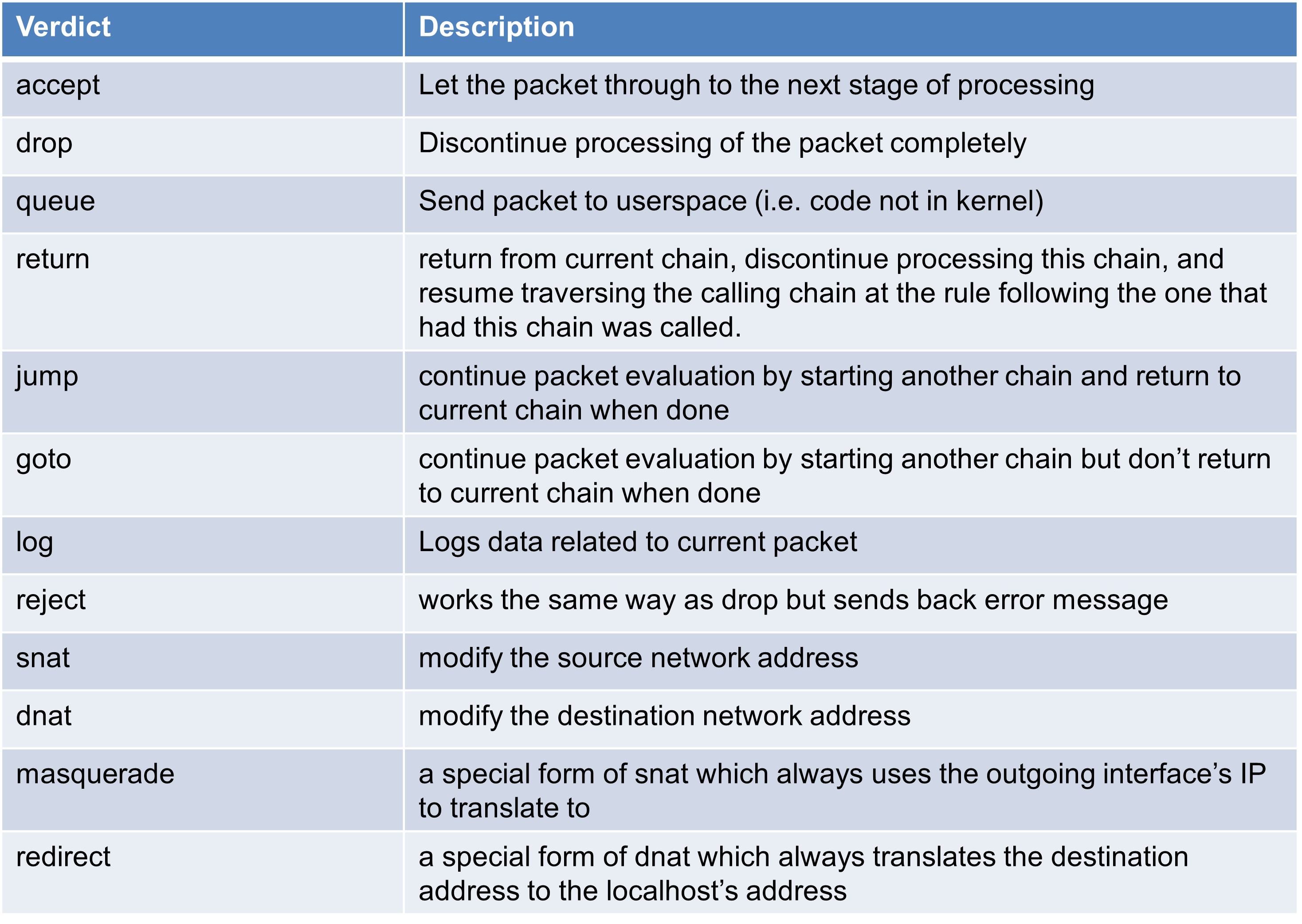

  • Action statement
    • e.g.: drop, accept, count

Netfilter: Chains

• Chains are sets of rules attached to a particular point in the processing of a packet
• There are multiple points in the processing of a packet where rules can be executed. These points are called “hooks”
• Rules within a chain are evaluated by priority until one matches

Netfilter: Hooks

There are 5 default chains/hooks for IPv4 and IPv6 datagrams

Netfilter: Packet flow through hooks

Netfilter: Tables

• There are types of packets that can be handled
• Each type is associated with a collection of valid hooks that can be applied
• Tables are groupings of chains with associated valid hooks that apply to a particular type of packets

Netfilter: Tables

Netfilter: Common matches

• iifname: input interface name
• oifname: output interface name
• ether daddr: Ethernet destination address
• ether saddr: Ethernet source address
• ip daddr: IPv4 destination address
• ip saddr: IPv4 source address
• ip proto: IPv4 contained protocol

• tcp sport: tcp source port
• tcp dport: tcp destination port
• udp sport: udp source port
• udp dport: udp destination port
• ct state: the state of the connection (established, related, new, untracked)
• ct direction: the direction of the connection (original, reply)

Example 1: /etc/sysconfig/nftables.conf

#!/usr/sbin/nft -f
flush ruleset

table ip filter {
    chain input {
        type filter hook input priority 0;
        policy drop;

        iifname "lo" counter accept
        iifname "eth0" tcp dport ssh counter accept
        iifname "eth0" ip protocol {icmp,dns} counter accept
        iifname "eth1" ip saddr 10.0.15.0/24 counter accept
        iifname "eth1" ip daddr 255.255.255.255 udp sport 68 udp dport 67 counter accept
        ct state related,established counter accept
    }

    chain forward {
        type filter hook forward priority 0;
        policy drop;

        iifname "eth1" ip saddr 10.0.15.0/24 counter accept
        iifname "eth0" ip daddr 10.0.15.0/24 tcp dport 22 counter accept
        iifname “eth0” ip protocol icmp ip daddr 10.0.15.0/24 counter accept
        ct state related,established counter accept
    }

    chain output {
        type filter hook output priority 0;
        policy accept;
    }
}

Example 2: /etc/sysconfig/nftables.conf

#!/usr/sbin/nft -f
flush ruleset

table ip nat {
    chain prerouting {
        ##### Port Forwarding ######

        type nat hook prerouting priority -100;
        iifname "eth0" tcp dport 8080 dnat 192.168.10.100:80
    }

    chain postrouting {
        ##### Address translation #######

        type nat hook postrouting priority 100;
        oifname "eth0" masquerade
    }
}

Reading List

• DNS (Read up to 10.1.2 nslookup and dig)
